认证产品，符合欧洲指令ATEX94/9/CE
机器安全
» 安全开关
» 编码磁开关
全面的紧凑型耐用安全开关，可以在危险环境中操作，主要是针对第21和22类多尘区域。

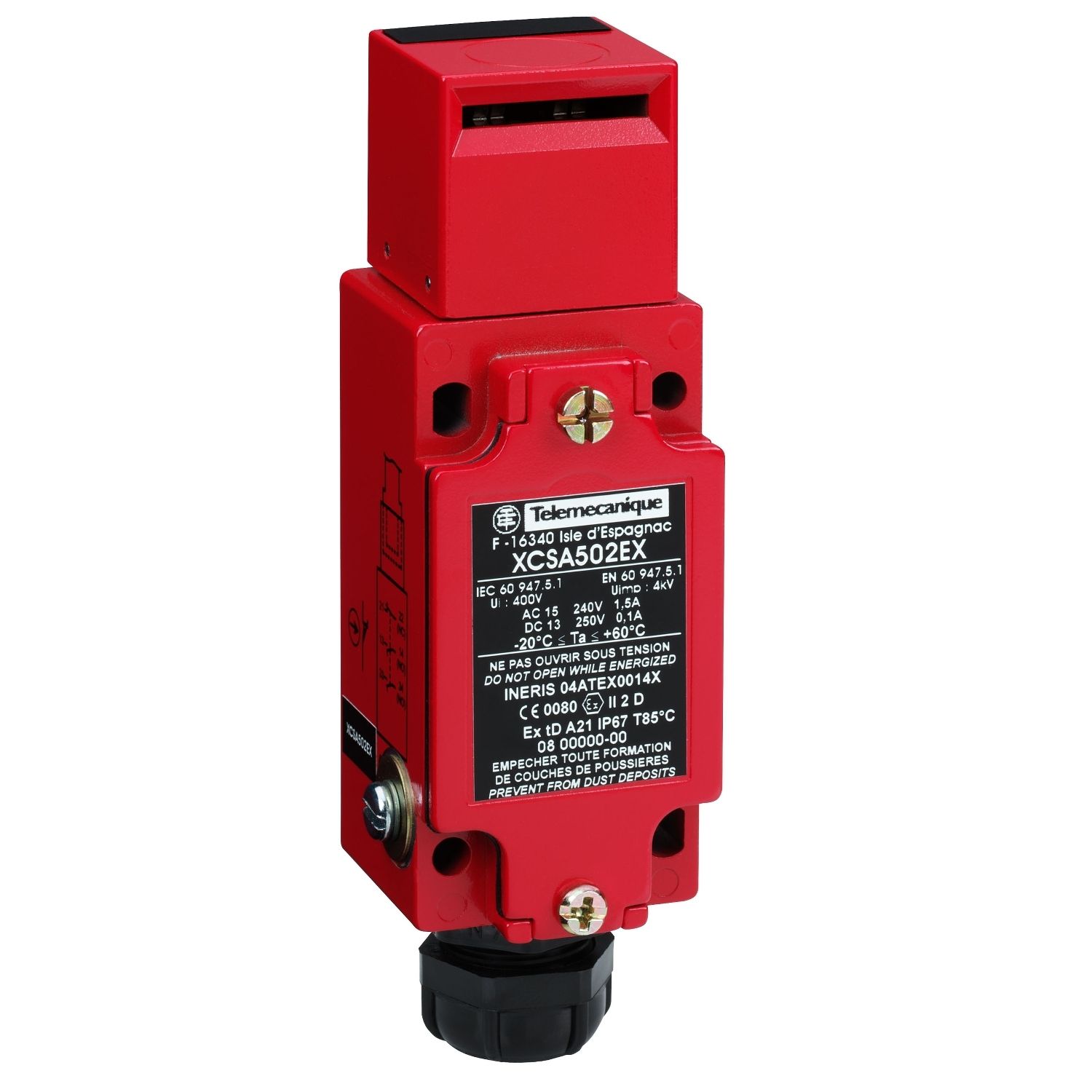

telemecanique防爆安全开关的具体型号有：
详细介绍 技术参数
认证产品，符合欧洲指令ATEX94/9/CE
机器安全
» 安全开关
» 编码磁开关
全面的紧凑型耐用安全开关，可以在危险环境中操作，主要是针对第21和22类多尘区域。
telemecanique防爆安全开关的具体型号有：
| range of product |
Preventa ATEX D
|
|
|---|---|---|
| product or component type |
Safety switch
|
|
| device short name |
XCSA
|
|
| material |
Metal
|
|
| head type |
Key operated turret head
|
|
| cable entry number |
1 tapped entry (M20 x 1.5) for cable gland (included), cable outer diameter: 7...13 mm
|
|
| electrical connection |
Terminal
|
|
| clamping connection capacity |
1 x 0.5...2 x 1.5 mm² with or without cable end
|
|
| number of poles |
3
|
|
| contacts type and composition |
1 NC + 2 NO
|
|
| contact operation |
Slow-break, break before make
|
|
| positive opening |
With NC contact
|
|
| locking options description |
Without locking of actuator
|
| local signalling |
Without
|
|
|---|---|---|
| mechanical durability |
1000000 cycles
|
|
| minimum actuation speed |
0.01 m/s
|
|
| maximum actuation speed |
0.5 m/s
|
|
| contact code designation |
A300, AC-15 (120 V, Ie = 6 A) conforming to EN/IEC 60947-5-1
A300, AC-15 (240 V, Ie = 3 A) conforming to EN/IEC 60947-5-1 Q300, DC-13 (125 V, Ie = 0.55 A) conforming to EN/IEC 60947-5-1 Q300, DC-13 (250 V, Ie = 0.27 A) conforming to EN/IEC 60947-5-1 |
|
| [Ithe] conventional enclosed thermal current |
10 A
|
|
| [Ui] rated insulation voltage |
300 V conforming to CSA C22.2 No 14
500 V conforming to EN/IEC 60947-1 300 V conforming to UL 508 |
|
| [Uimp] rated impulse withstand voltage |
6 kV conforming to EN/IEC 60947-5-1
|
|
| short-circuit protection |
10 A cartridge fuse, gG (gl)
|
|
| actuator force for extraction |
>= 20 N
|
|
| operating rate |
<= 10 cyc/mn for maximum durability
|
|
| body material |
Zamak
|
|
| head material |
Zamak
|
|
| CAD overall width |
40 mm
|
|
| CAD overall height |
114 mm
|
|
| CAD overall depth |
44 mm
|
|
| product weight |
0.44 kg
|
