| Product |

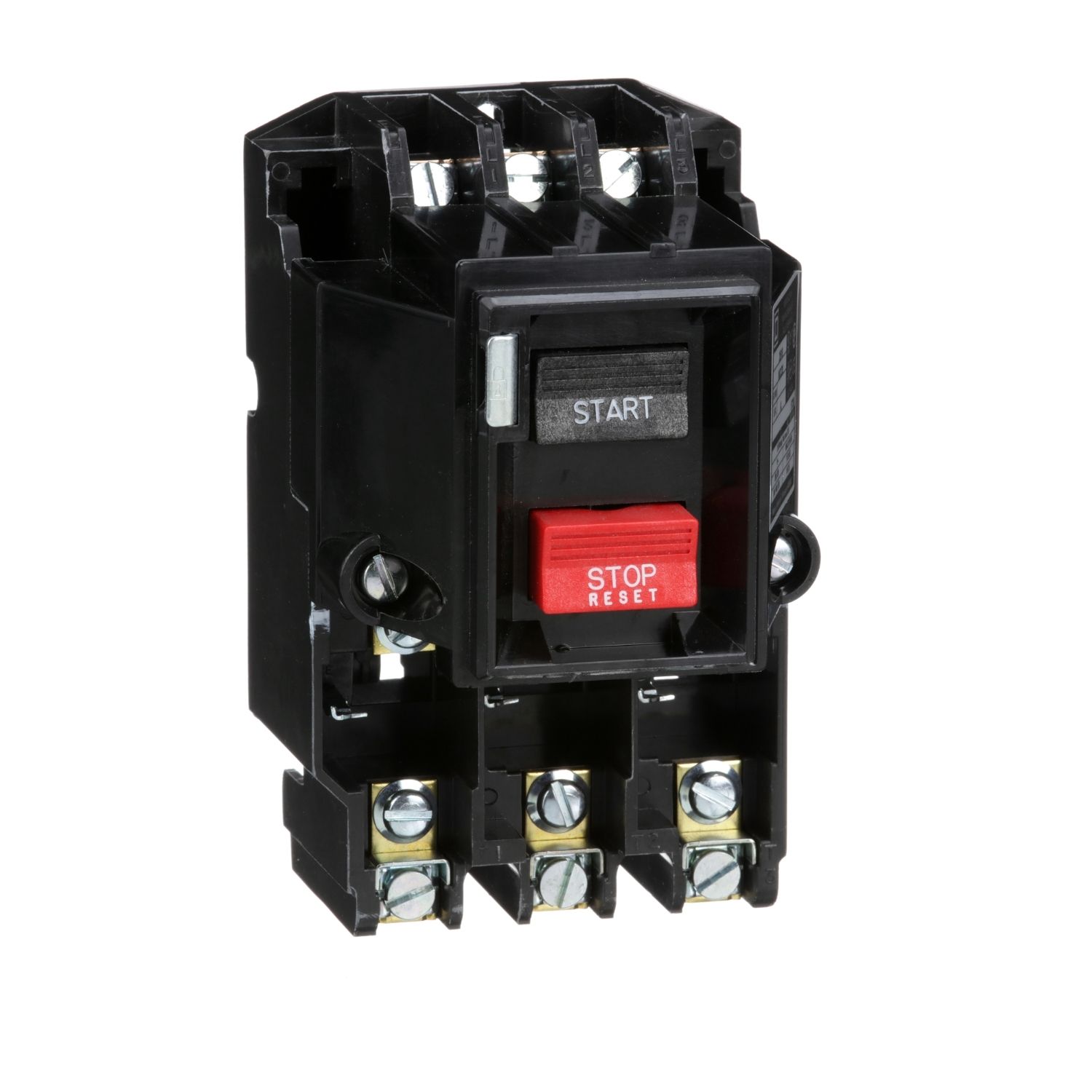

Manual Starter
|
|
|---|---|---|
| Type |
M
|
|
| NEMA Size |
M-1
|
| Control Unit |
Push-button
|
|
|---|---|---|
| Pilot Light |
No indicator
|
|
| Horsepower Rating |
7.5 hp 200...230 V AC, 3 phase
10 hp 380...575 V AC, 3 phase |
|
| Voltage Rating |
600 V AC
|
|
| Number of Poles |
3P
|
|
| Starter Type |
Non reversing
|
|
| Electrical Connection |
Pressure wire clamp
|
|
| Overload Relay Type |
Melting alloy
|
|
| Number of Thermal Units Required |
3
|
|
| Wire Gauge |
AWG 14...AWG 8 copper
|
|
| Auxiliary Contacts |
Without
|
|
| height |
5.72 in (145.29 mm)
|
|
| width |
3.5 in (88.90 mm)
|
|
| depth |
4.03 in (102.36 mm)
|
|
| net weight |
2.20 lb(US) (1.00 kg)
|
| Certifications |
CSA LR60905 class 3211 05
UL listed file E42243 CCN NLRV |
|
|---|---|---|
| NEMA Enclosure Rating |
Not rated (open device)
|
| Category |
21103 - 2510,2511,2512 M,T
|
|
|---|---|---|
| Discount Schedule |
CP1
|
|
| GTIN |
00785901792208
|
|
| Returnability |
Yes
|
|
| Country of origin |
MX
|
| California proposition 65 |
WARNING: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
|
|---|
